Brand: GARDELINA
Product Code: DWP 40 BS4X
Availability: In Stock
7,200 Lei
Comanda acum !
Formular contact

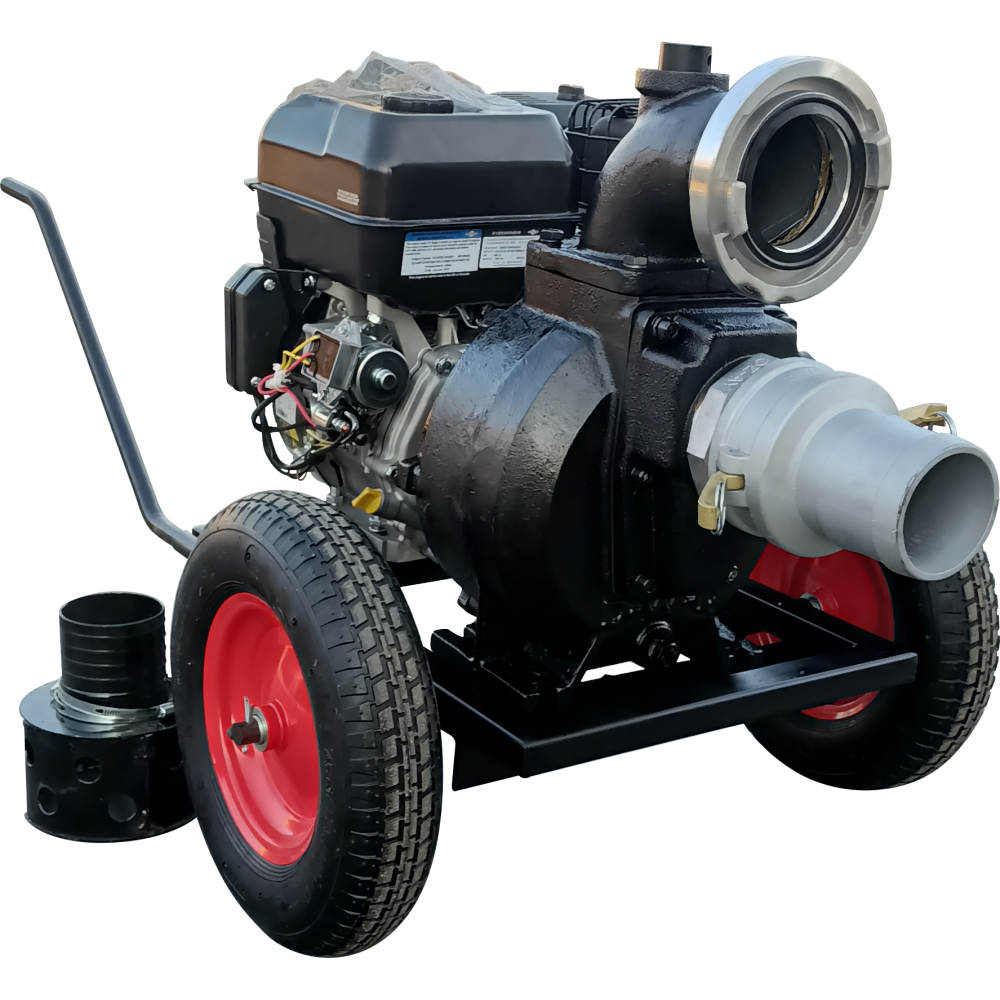

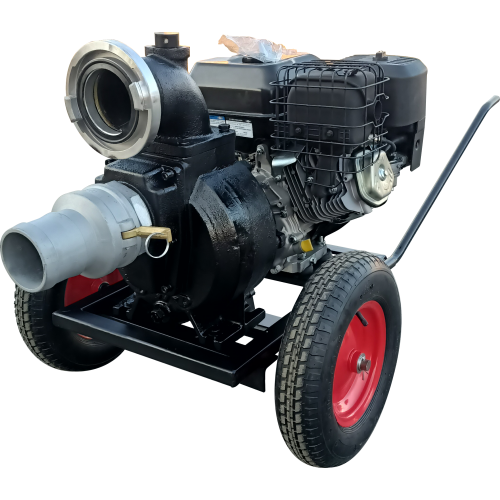

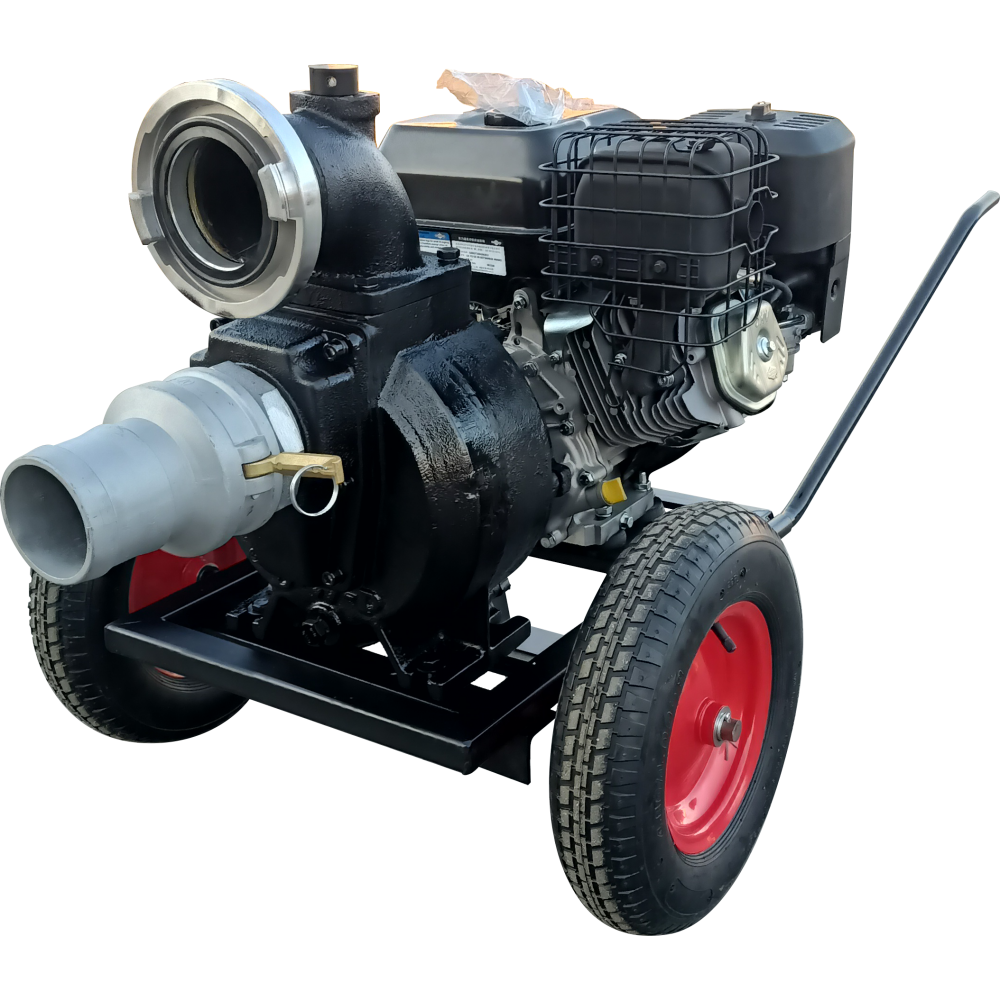

Motor pump DWP 420 BS4X

Engine type - XR 2100 (OHV)
Engine power - 14 hp
Maximum pressure - 4.2 Bar
Maximum flow - 94M3 / Hour

Absorption diameter - 4 ”(100 mm)
Discharge diameter - 4 ”(100 mm)


Basic characteristics of the pump:
Other Pump Body and Rotor - Cast Iron
Priming Type: Self-priming - 30-160 sec
Pumped liquid temperature - 90 degrees maximum
Granulometers (particle diameter) - 27mm
Suction depth - 8M maximum
General Motor Data
4-stroke petrol engine 420CC
Starting system: Manual
Oil level protection - included
Lubrication system: Bubble
Oil bath capacity: 1.1 l
Fuel tank capacity: 6.1 l
Fuel consumption 2.5 l / h (75% load)
Motopoma weight - 85 KG

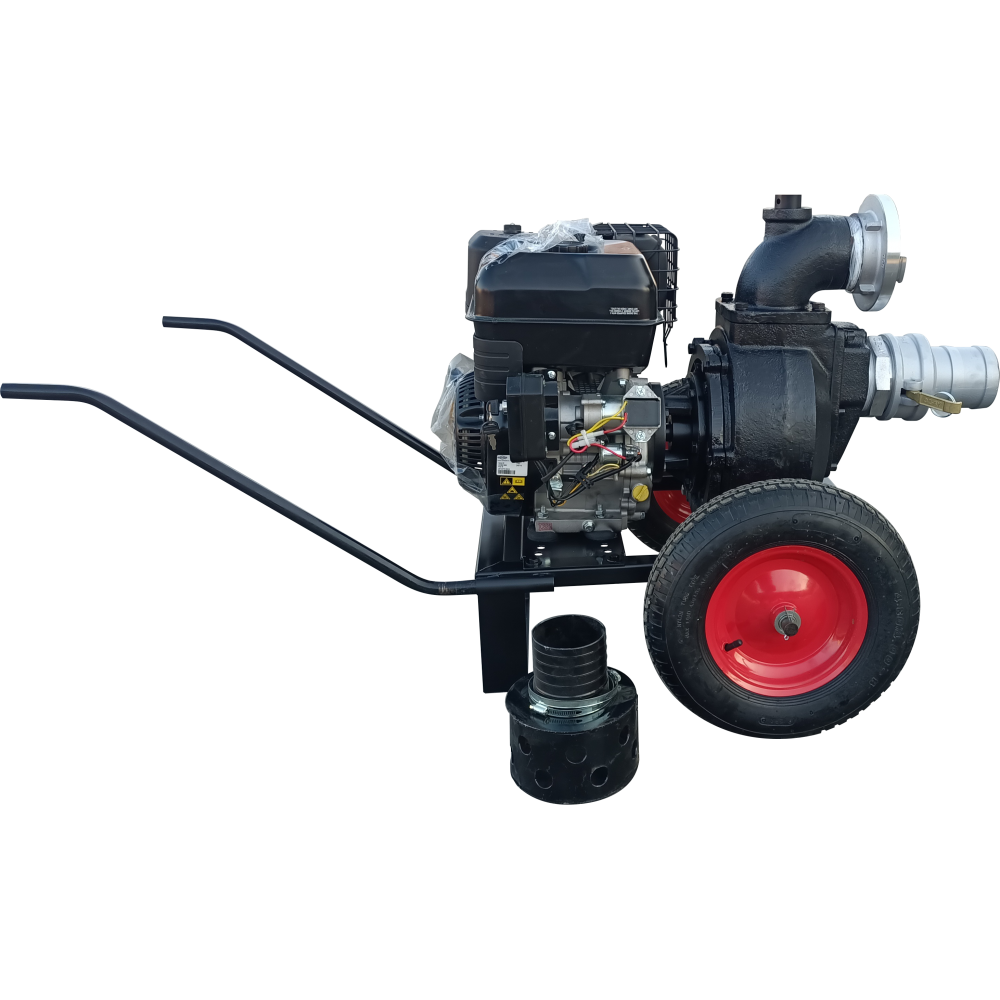

The motor pump is mounted on a robust frame, wheelbarrow type, easy for handling and transport.

The motor pump is equipped with the following components:
1) 4 ”cast iron suction and discharge couplings with EPDM gaskets,
2) Metal sieve with granulometry sieve.
The working flow can be found in the test report of the motor pump.

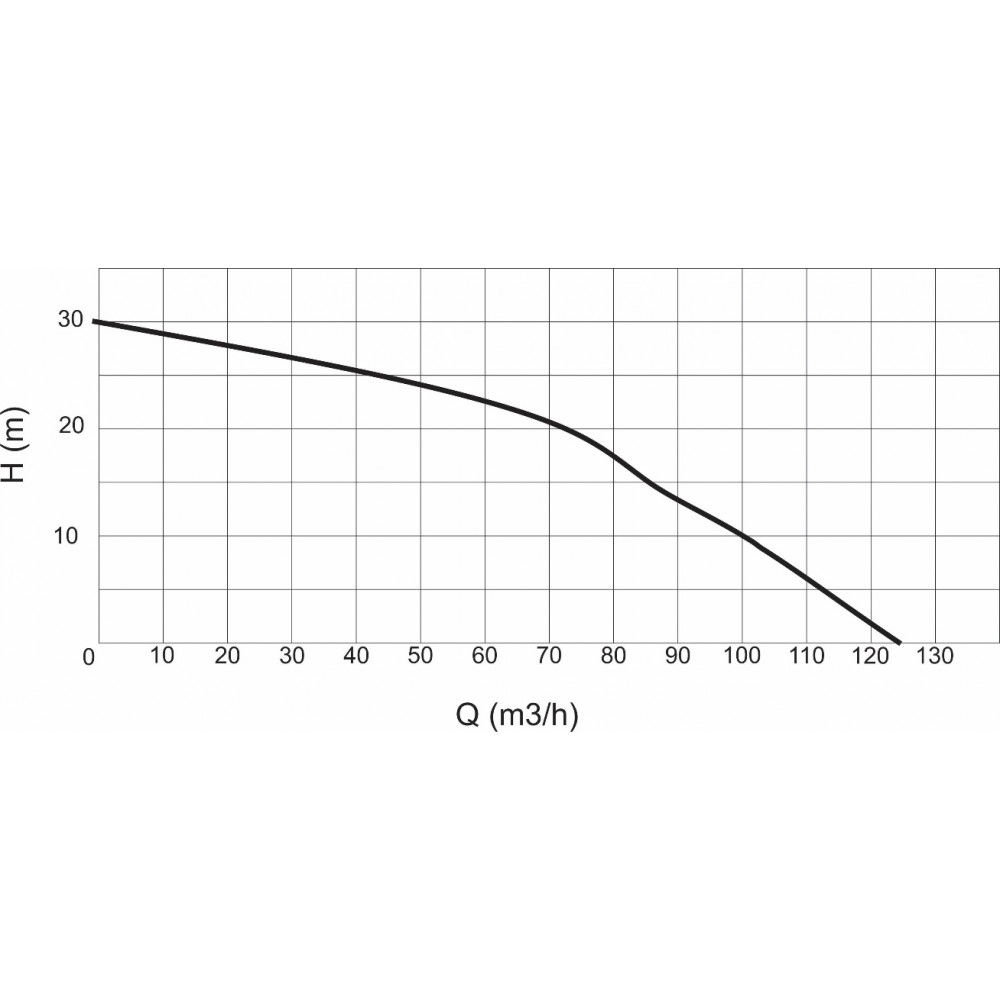

According to the performance curve of the motor pump.
